• Product Detail:

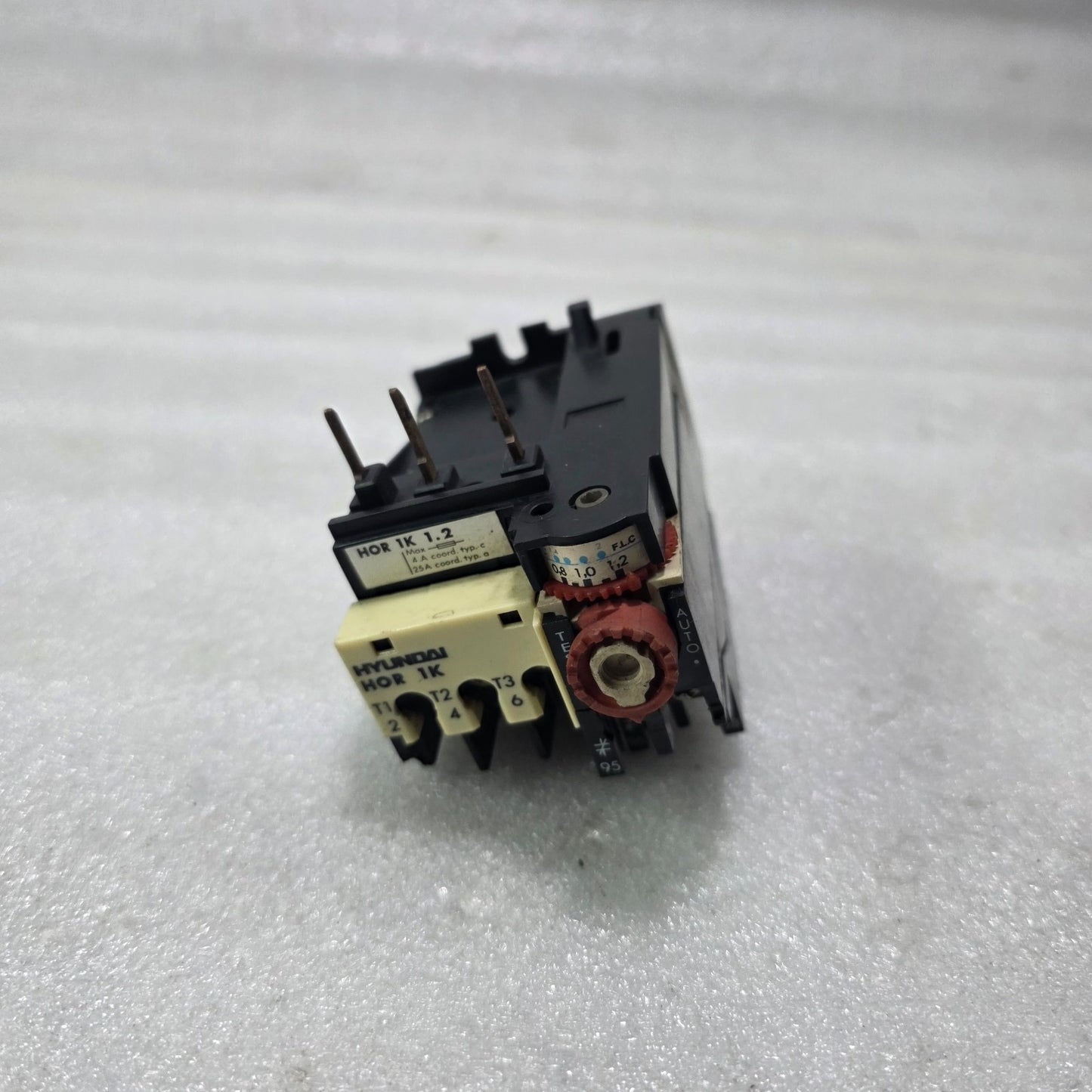

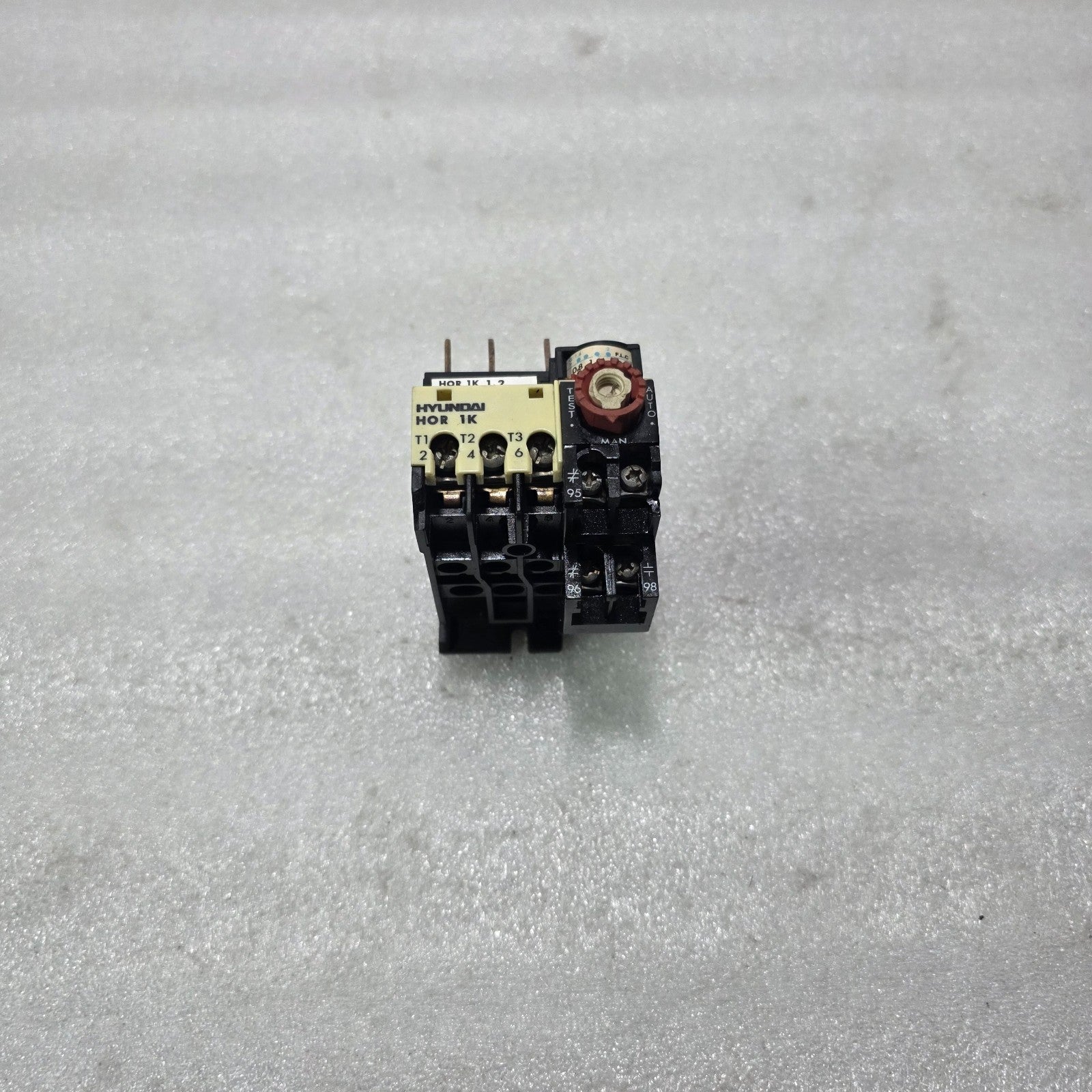

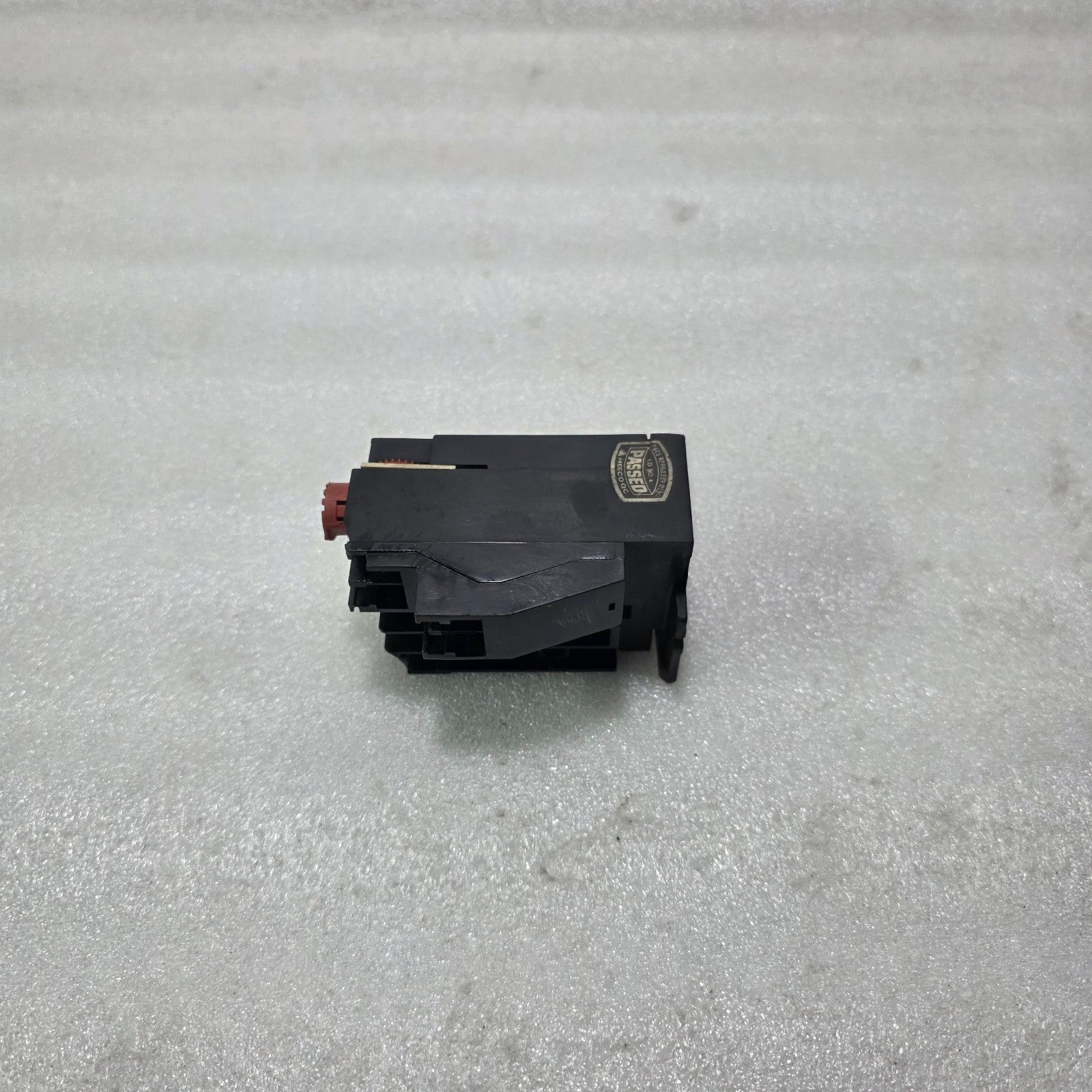

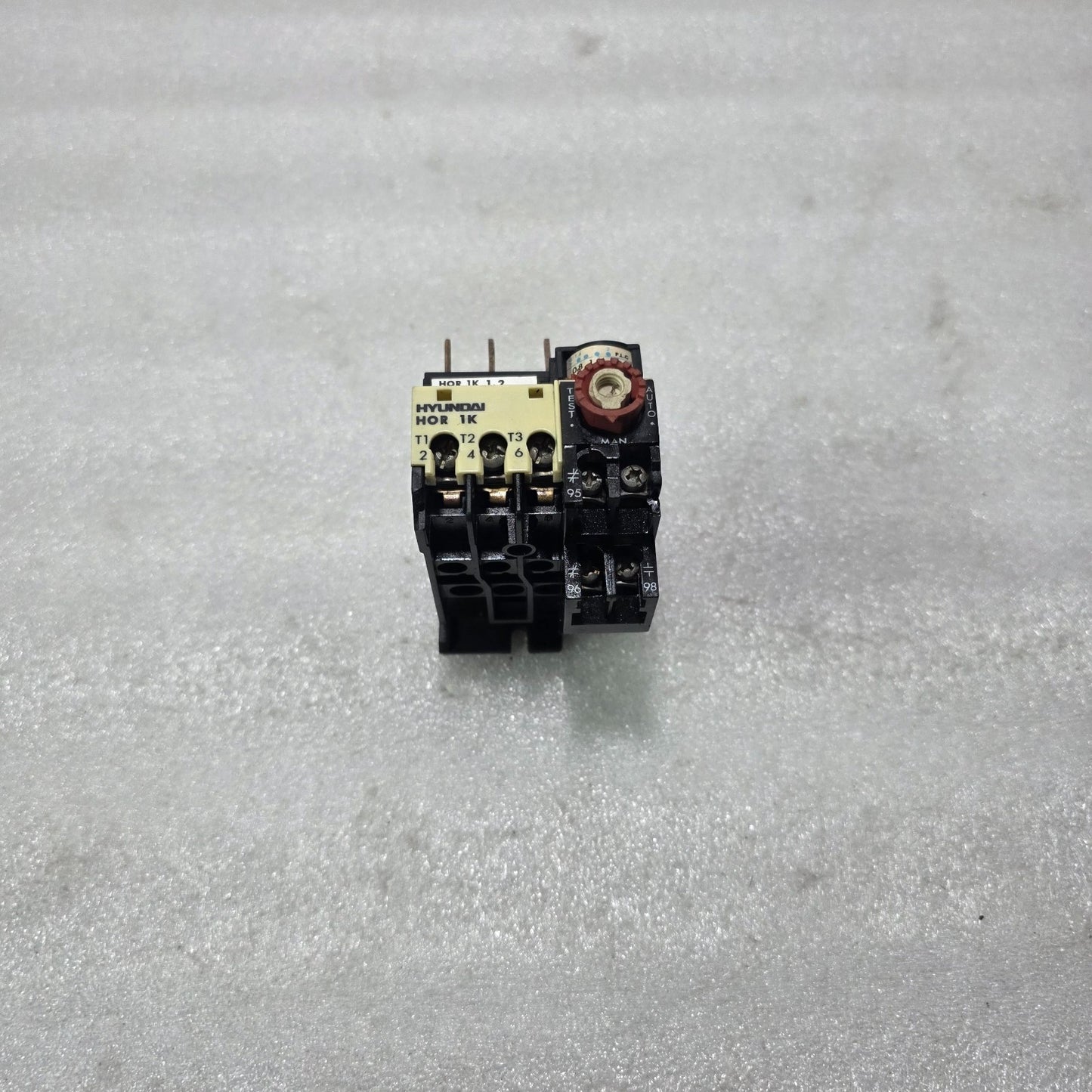

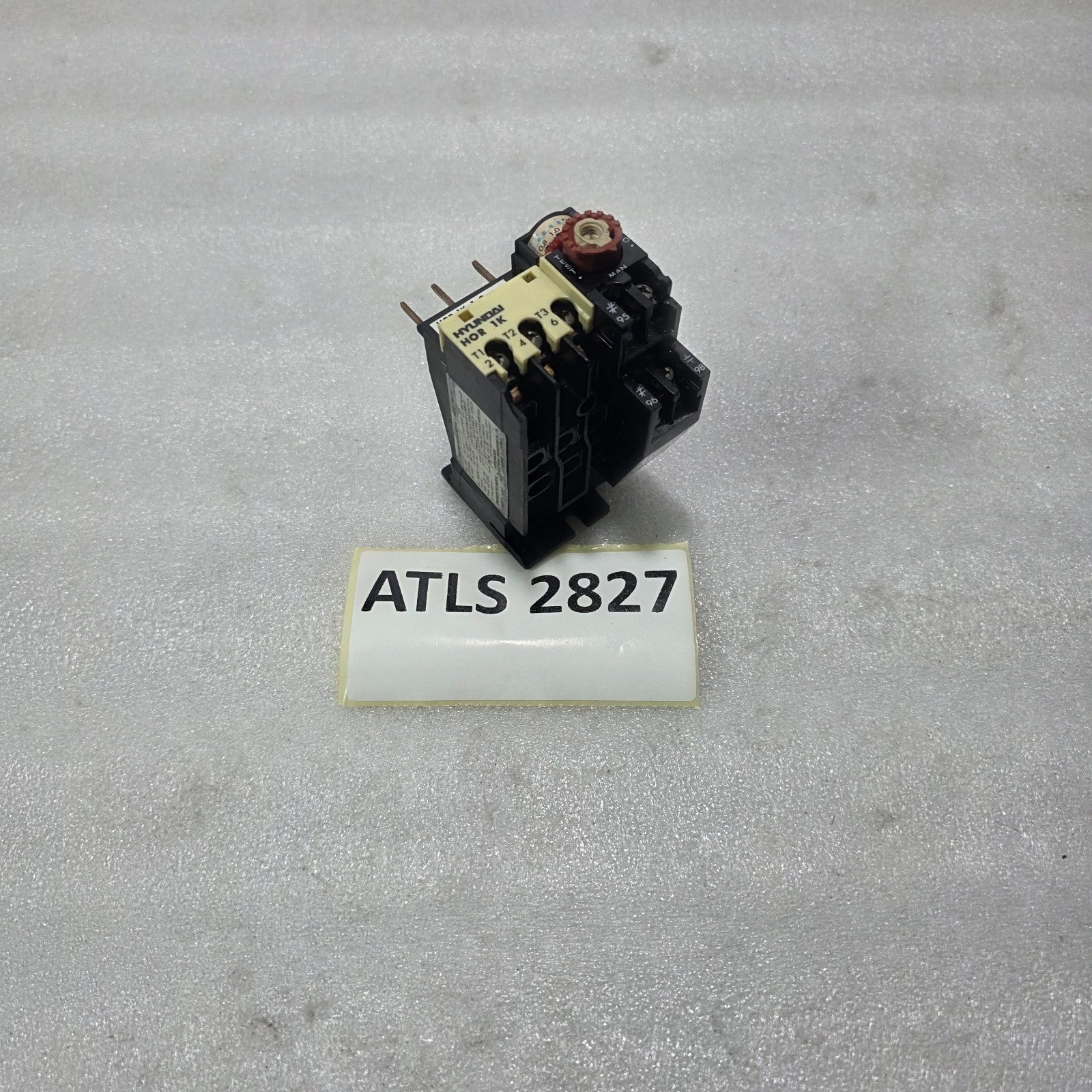

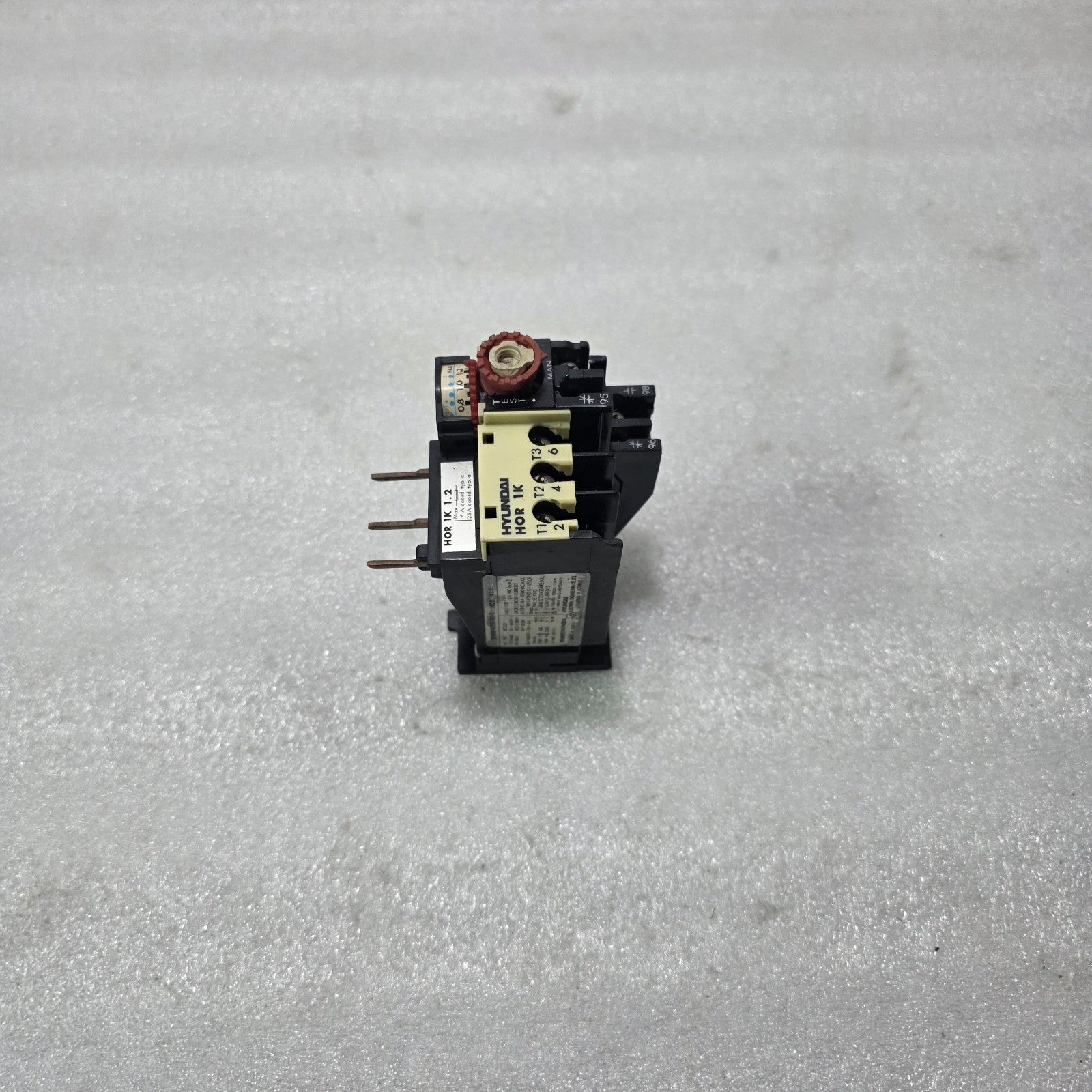

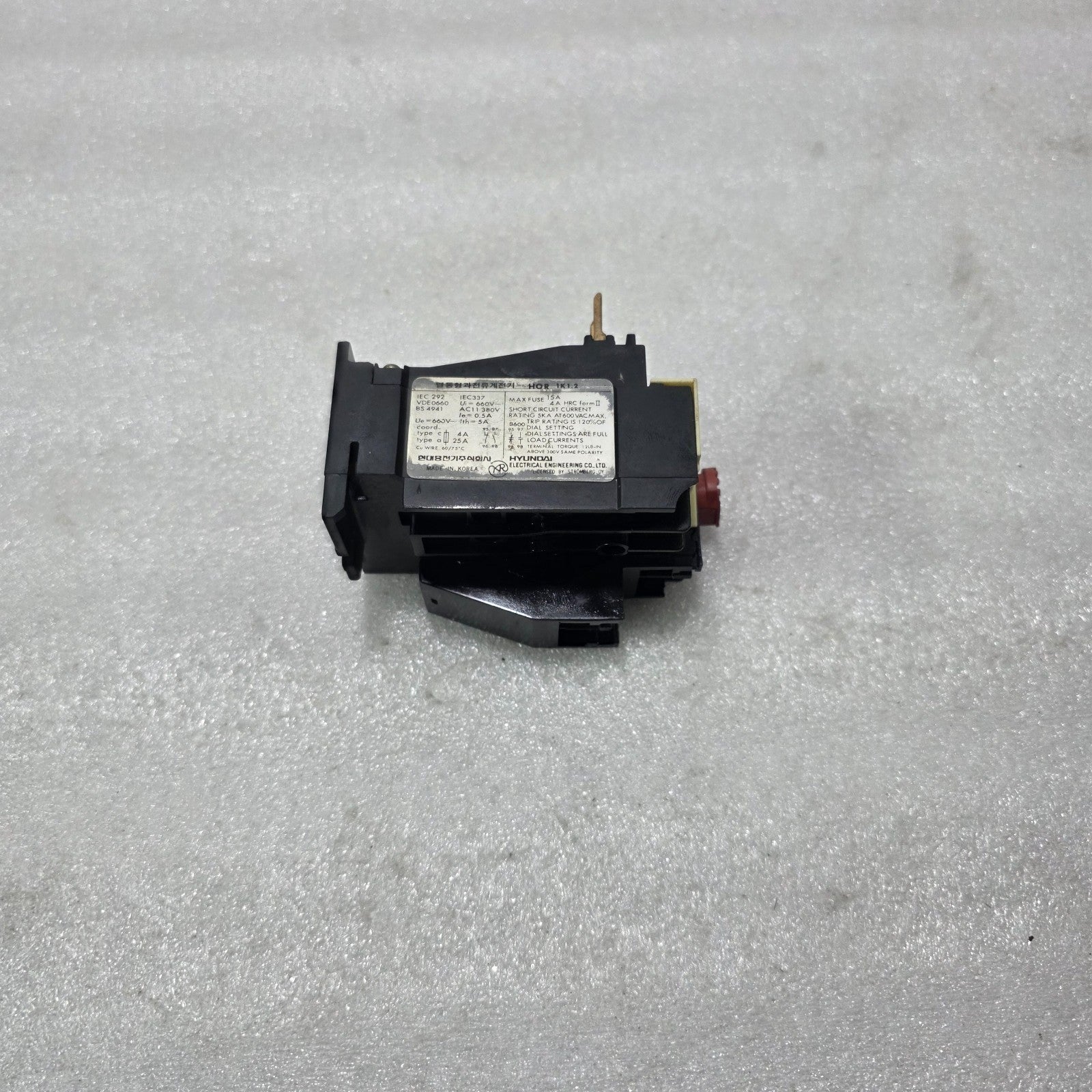

HYUNDAI HOR 1K 1.2 THERMAL OVERLOAD RELAY 3 POLE 0.8-1.2A (FLC DIAL)

BRAND: HYUNDAI

SERIES: HOR 1K

PART NUMBER: HOR 1K 1.2

ALSO KNOWN AS: HOR1K, HOR-1K 1.2, HYUNDAI HOR1K 0.8-1.2A, HYUNDAI ELECTRICAL ENGINEERING HOR1K

TYPE: THERMAL OVERLOAD RELAY 3 POLE

CURRENT SETTING RANGE: 0.8-1.2A (FLC DIAL)

CONTACTS: 1NC (95-96) + 1NO (97-98)

RATED INSULATION VOLTAGE (UI): 660V

RATED VOLTAGE: AC11 380V

SHORT CIRCUIT RATING: 5KA @ 600VAC

MAX FUSE: 15A

COORDINATION TYPE A: 4A

COORDINATION TYPE G: 25A

STANDARD: IEC 292, IEC 337, VDE 0660, BS 4941

RESET: MANUAL / AUTOMATIC (SELECTABLE)

TEST BUTTON: YES

TERMINALS: T1/2, T2/4, T3/6

MADE IN: KOREA

MANUFACTURER: HYUNDAI ELECTRICAL ENGINEERING CO. LTD
