• Product Detail:

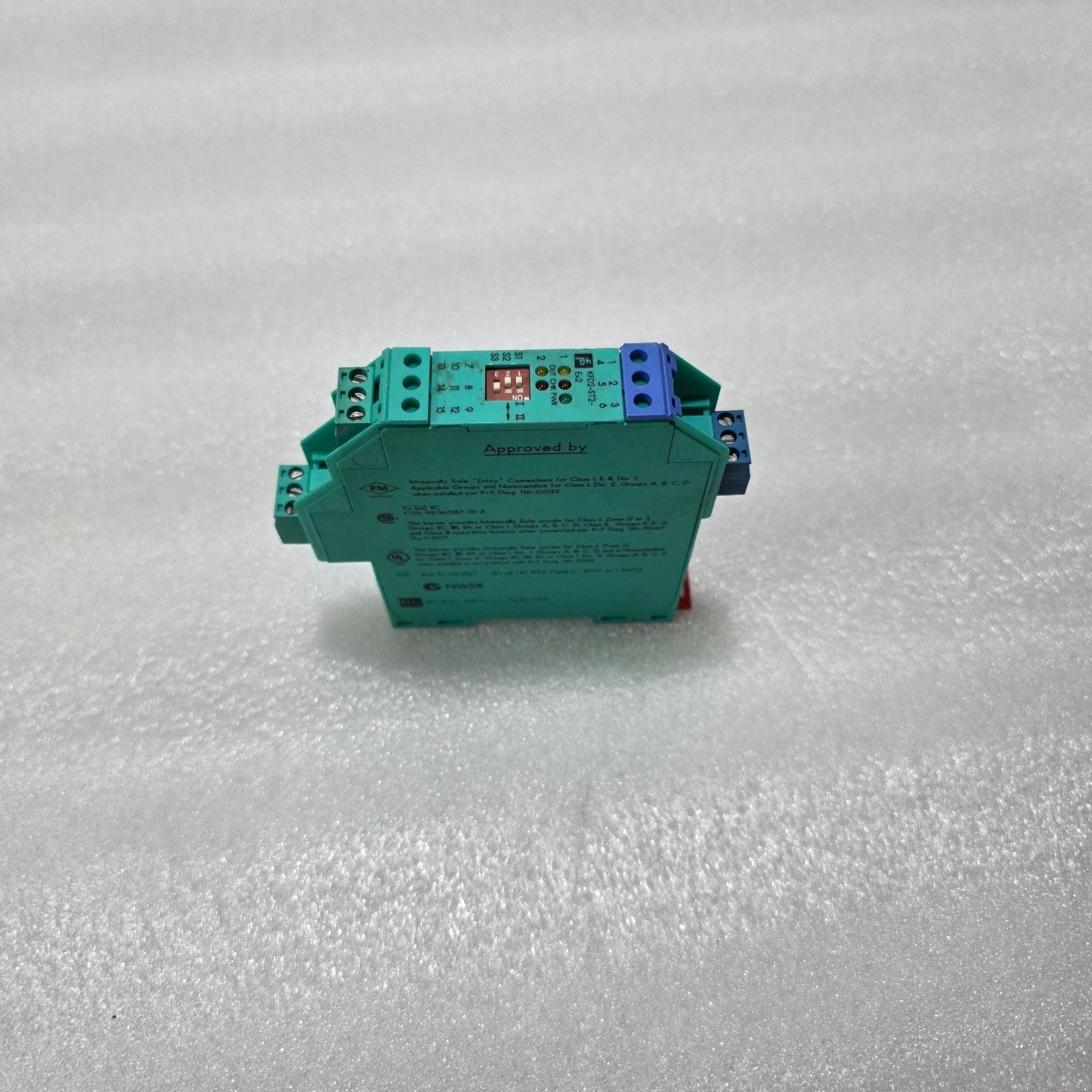

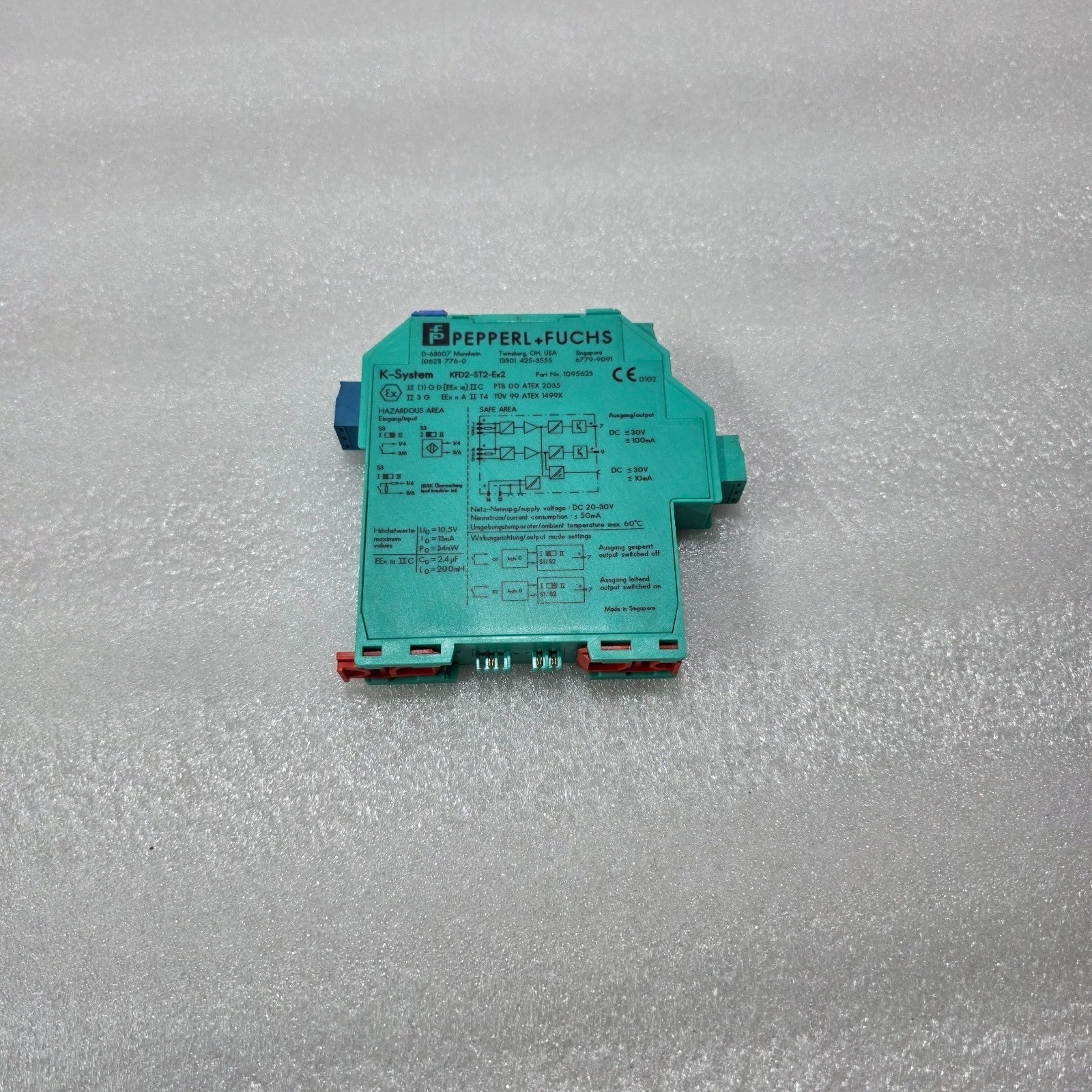

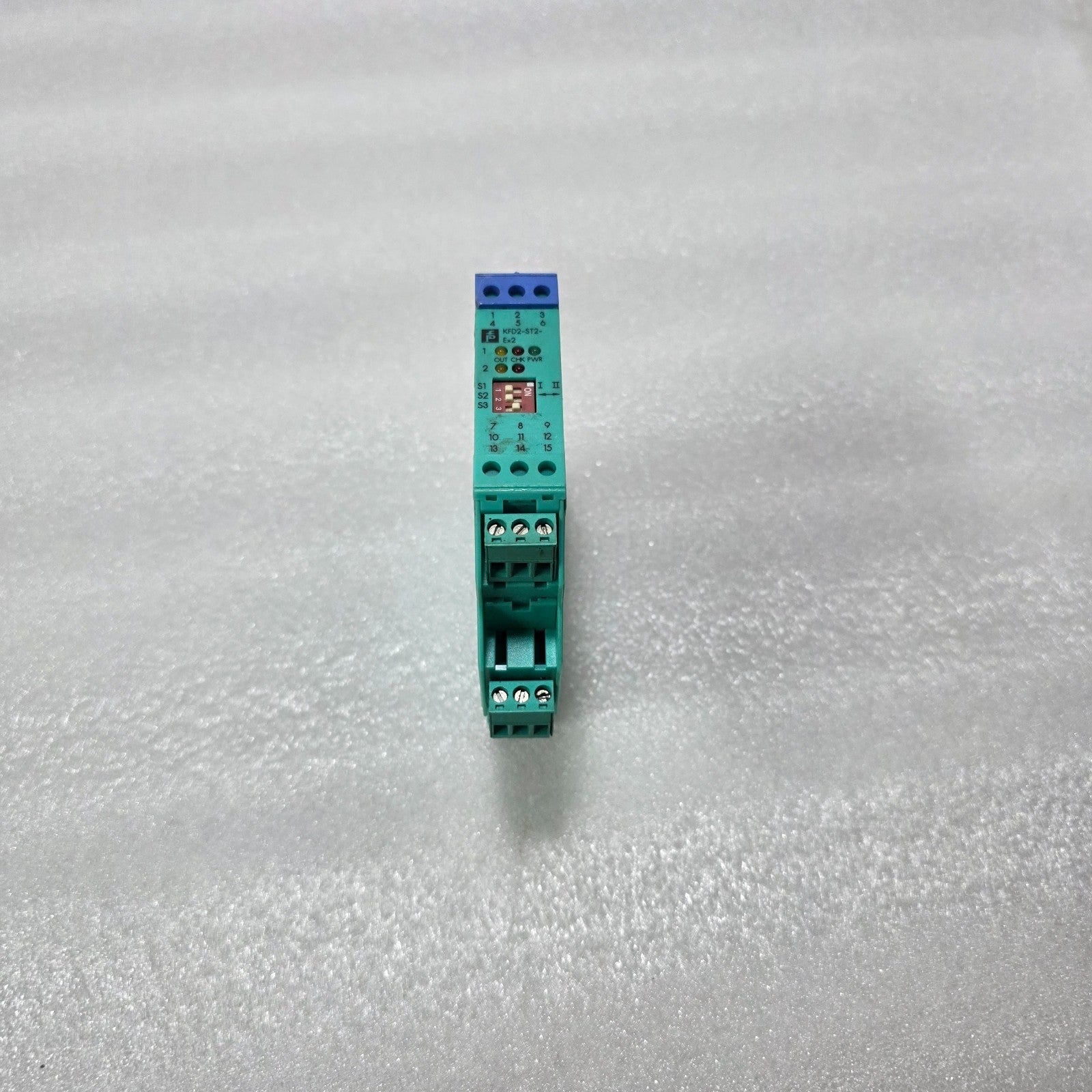

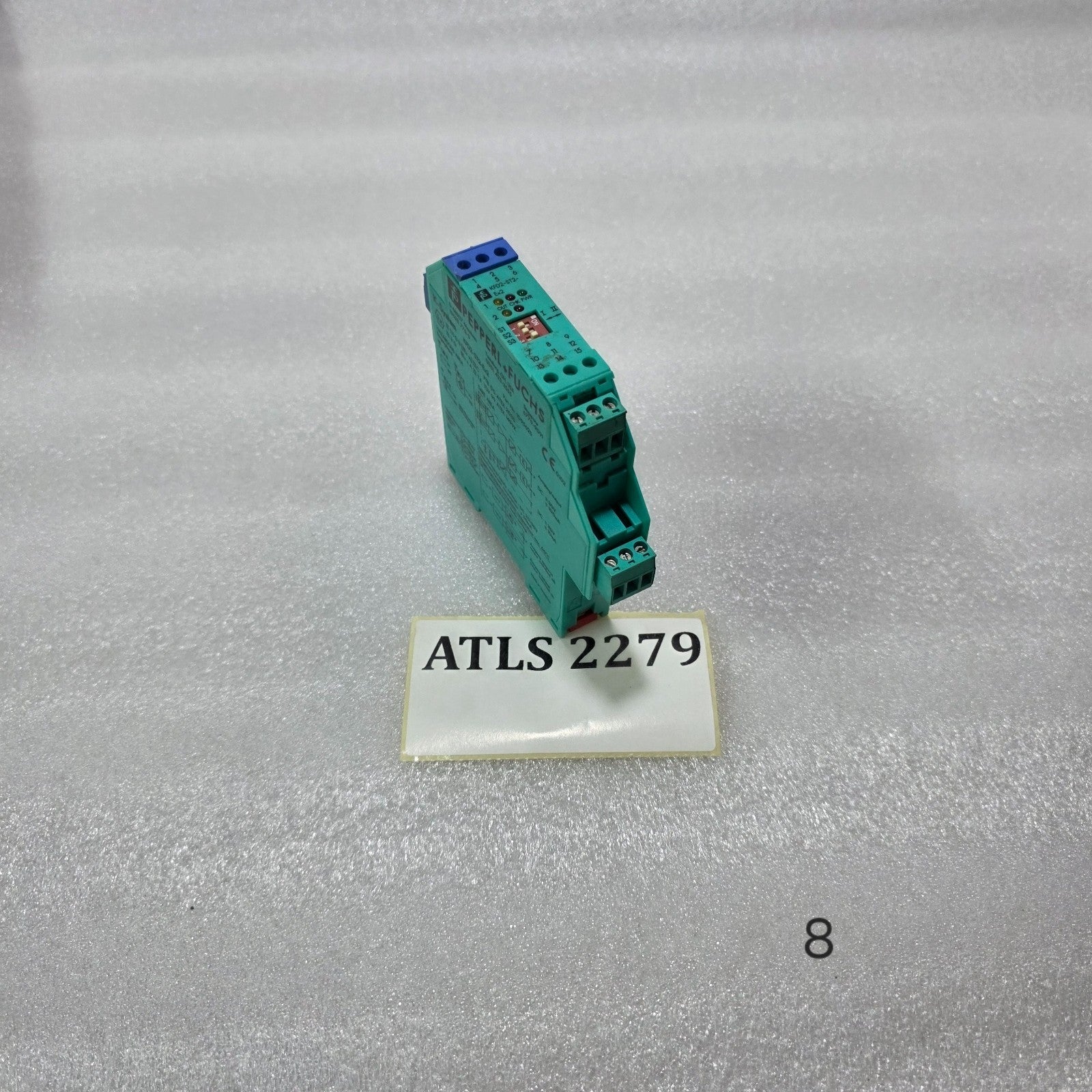

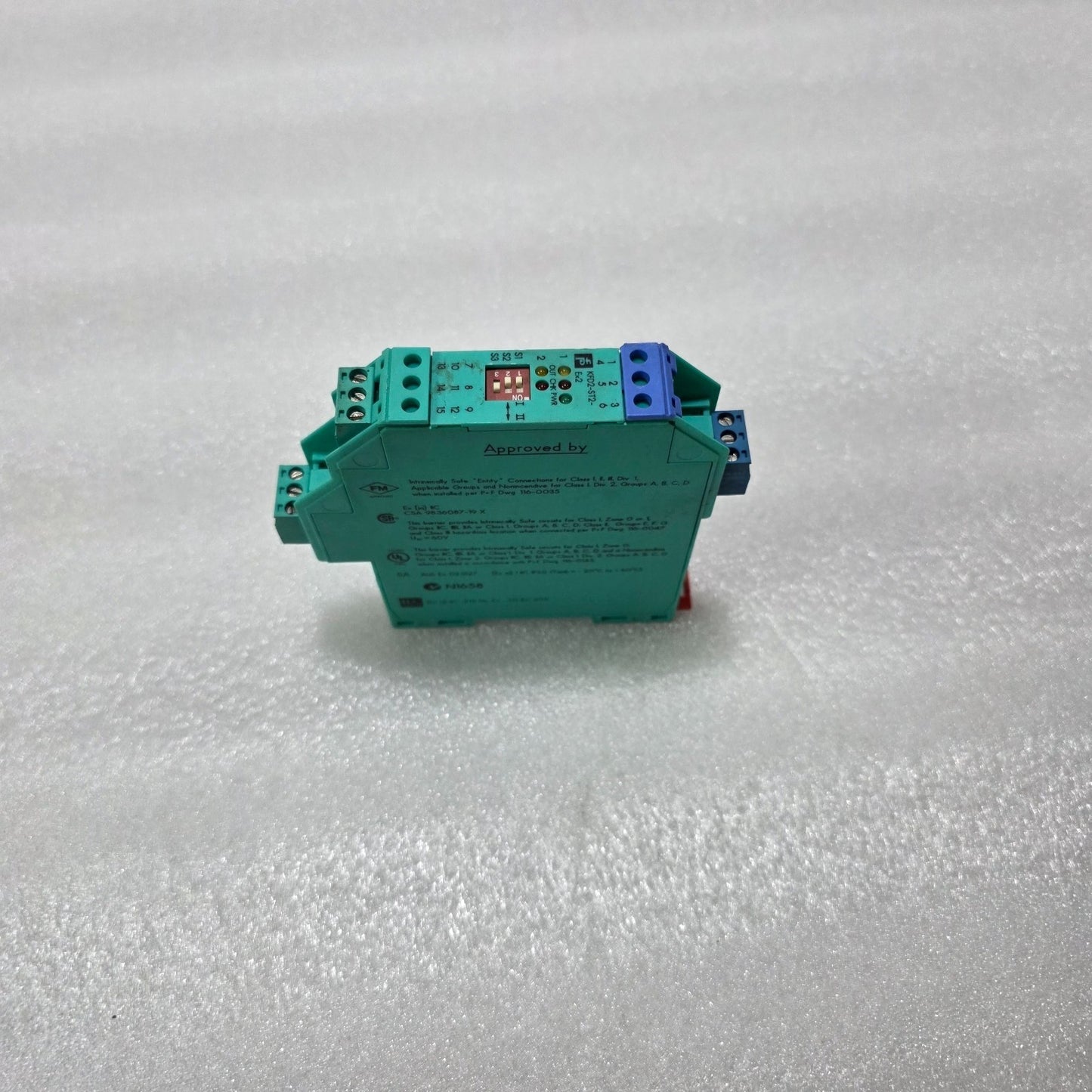

PEPPERL+FUCHS KFD2-ST2-EX2 K-SYSTEM 2-CHANNEL SWITCH AMPLIFIER INTRINSIC SAFETY BARRIER DC 30V 109562S

BRAND: PEPPERL+FUCHS

SERIES: K-SYSTEM

PART NUMBER: KFD2-ST2-EX2

ALSO KNOWN AS: KFD2ST2EX2 / 109562S

TYPE: SWITCH AMPLIFIER / INTRINSIC SAFETY BARRIER (2-CHANNEL)

SUPPLY VOLTAGE: DC 20–30V

CURRENT CONSUMPTION: ≤50MA

OUTPUT CH.1 (SAFE AREA): DC ≤30V / ≤100MA

OUTPUT CH.2 (SAFE AREA): DC ≤30V / ≤10MA

HAZARDOUS AREA MAX VALUES: UO=10.5V, IO=13MA, PO=34MW / CO=2.4µF, LO=200MH

AMBIENT TEMPERATURE: -20°C TO +60°C

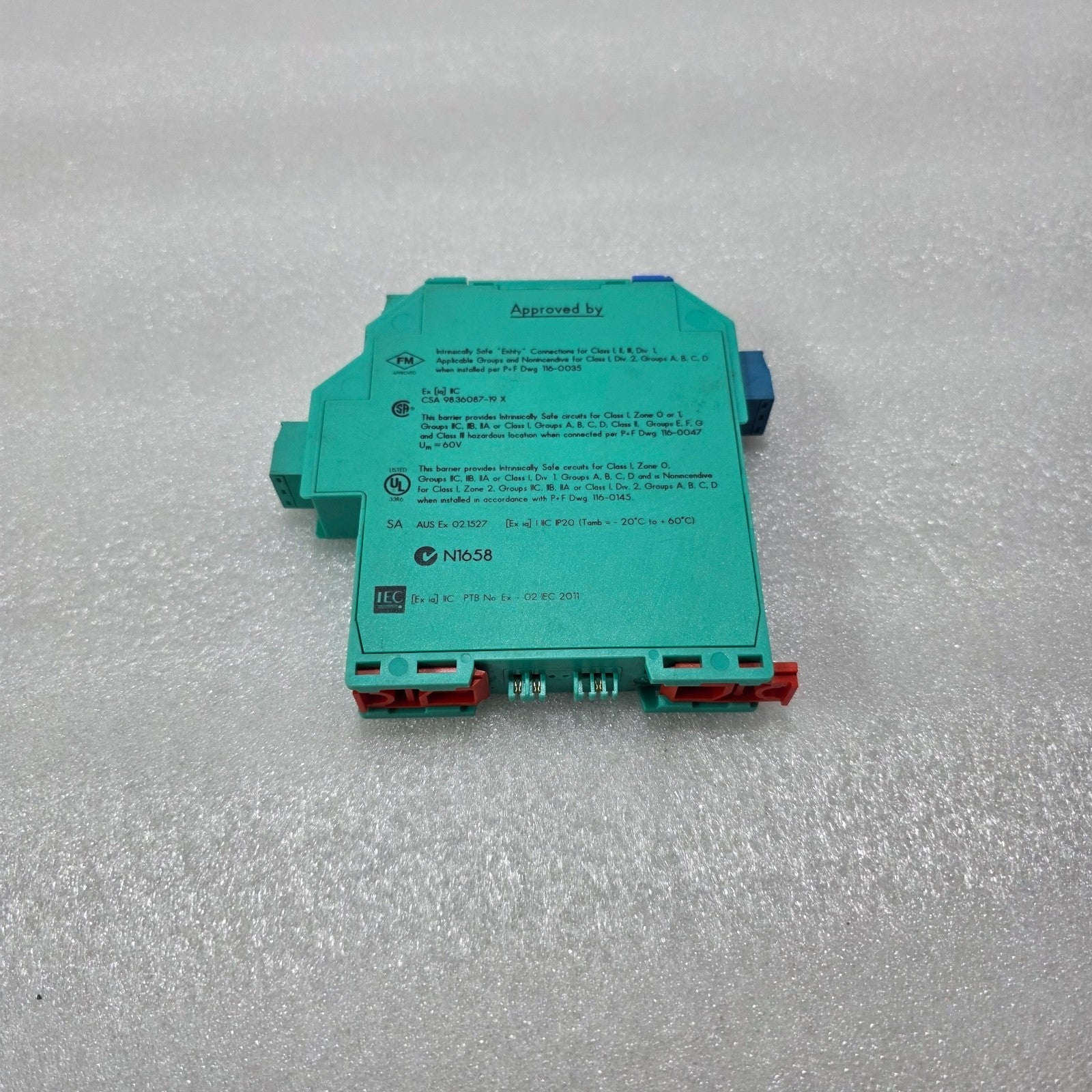

ATEX: II (1) G D / EEEX IA IIC / PTB 00 ATEX 2035 / TUV 99 ATEX 1499X

FM APPROVAL: CL I DIV 1 & DIV 2, GPS A–D

CSA: 9836087-19 X / [EX IA] IIC

IECEX: PTB NO. EX-02 IEC 2011 / [EX IA] IIC

AUSTRALIA: AUS EX 021527 / [EX IA] IIC IP20

STANDARDS: CE 0102

MADE IN: SINGAPORE
